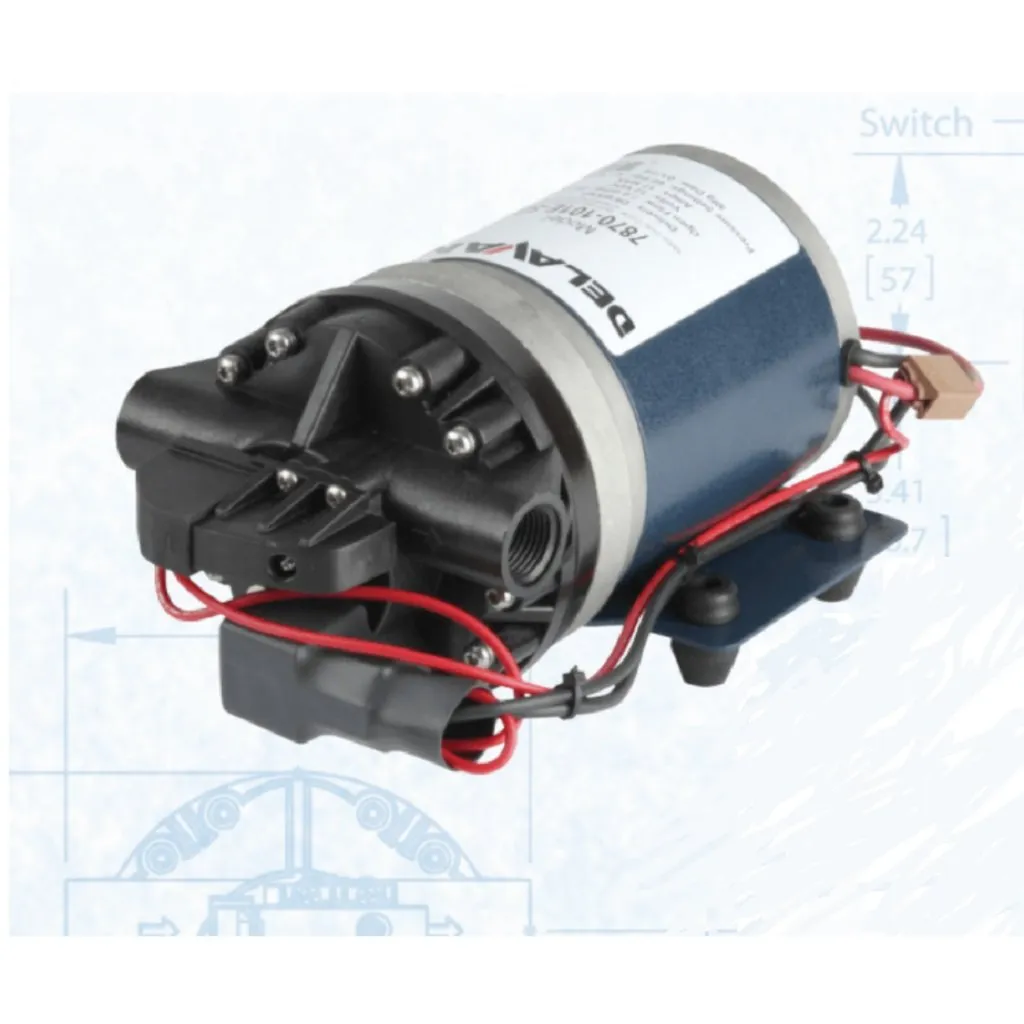

Delavan FB2 series on demand Twelve Volt Pump
Specs:
- Pump Type: Demand
- Flow: Up to 7 GPM
- Pressure: Up to 100 PSI
- Valves: Viton
- Diaphragm: Santoprene
- Ports: ½” FNPT
- Power: 12V – Wire Leads with 2-pin molded connector
- Weight: 8 lbs
100% Factory tested, NSF approved high torque motor for superior flow at pressure, self-priming, can be run dry.
FB2 7.0 GPM Demand
| PSI | GPM | AMPS |
|---|---|---|
| 0 | 7.2 | 12.3 |
| 10 | 6.7 | 13.9 |
| 20 | 6.3 | 16.4 |
| 40 | 5.5 | 19.1 |
| 60 | 4.8 | 22.5 |
| 80 | 4.5 | 25.3 |
| 90 | 4.1 | 27.1 |
